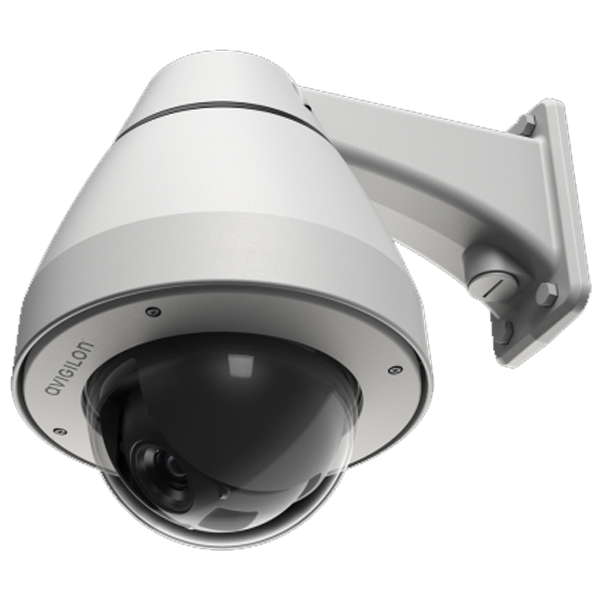

Avigilon H5A-PTZ_Camera
WIDE AREA COVERAGE AND POWERFUL ZOOM
The Avigilon H5A Pan-Tilt-Zoom (PTZ) Camera brings wide area coverage and long range detail with up to 36x zoom for superior situational awareness. Available in 2, 4 and 8 MP resolutions, the H5A-PTZ provides high-quality, evidentiary images and 360° views for you to monitor critical infrastructure, public safety, gaming, transportation, ports or large open areas (e.g. parking lots) with ease.
-
5-YEAR WARRANTY
Avigilon stands behind the quality of this product with a 5-year, industry-leading warranty – terms and conditions on moving parts may apply
-
AVIGILON APPEARANCE SEARCH™ SUPPORT
Enables our sophisticated deep learning AI search engine that enables you to quickly locate a specific person or vehicle of interest in recorded video across an entire site within seconds
-
COVID-19 RESPONSE TECHNOLOGY
Supports occupancy counting and no face mask detection technologies to help keep facilities and people safe
-
Easy Transition From H4 PTZ To H5A-PTZ
Field-replaceable parts and compatibility with existing H4 PTZ mounting accessories and power switches allow for an easy transition from H4 PTZ cameras to H5A-PTZ cameras.
-
FACIAL RECOGNITION SUPPORT
Enables our facial recognition technology to help you identify people of interest faster with secure watch list(s) and alarms
-
FIPS 140-2 COMPLIANT
Enables the camera to be deployed at sites requiring FIPS-compliant cryptography
-
H.264 AND H.265 HDSM SMARTCODEC™ TECHNOLOGIES
Combines our newest compression technologies to enhance bandwidth and storage savings
-
LIGHTCATCHER™ TECHNOLOGY
Offers exceptional detail in areas with low lighting
-
NEXT-GENERATION VIDEO ANALYTICS
Expanded object classifications and more accurate detection in crowded scenes so you can detect faster
-
ONVIF® COMPLIANT
Native ONVIF Profile S, T and G compliance allows easy integration with existing ONVIF infrastructures
-
Ready For Use Indoors & Outdoors
The H5A-PTZ is rated IK10 for impact resistance, IP66 and IP67 for water resistance and NEMA 4X for windblown dust, water (e.g. rain, sleet, snow) and corrosion resistance to provide optimal protection in different environments.*
* IP66/67 and NEMA 4X available on pendant mount only.
-
UNUSUAL ACTIVITY DETECTION
Uses AI to notify you of unusual speed and location of people and vehicles that might otherwise otherwise have been missed
-
WATER, IMPACT & ENCLOSURE RATED*
IP66/67 rating for water resistance, IK10 rating for impact resistance, NEMA 4X rating for windblown dust, water (e.g. rain, sleet, snow) and corrosion resistance
* IP66/67 and NEMA 4X available on pendant mount only. -
WIDE DYNAMIC RANGE
Captures details in scenes with both very bright and very dark areas
Performance Characteristics
Compression Technology
H.264 and H.265 video compression support for bandwidth and storage optimization
Frame Rate
Up to 60 fps video streaming for smooth motion capture
Low Light Performance
Advanced low light imaging with infrared support for nighttime visibility
Maximum Resolution
Up to 8 MP video resolution for detailed image capture and forensic review
Network Connectivity
Ethernet network support for cloud and remote management integration
Optical Zoom
Up to 36x optical zoom for long distance monitoring without image degradation
PTZ Movement
Continuous 360° pan, tilt functionality, and high speed positioning
Wide Dynamic Range
Up to 120 dB WDR for improved image quality in challenging lighting conditions
Physical Characteristics
Dimensions
(Ø) 250 mm × (H) 364 mm (Ø) 9.84 ” × (H) 14.33″
Operating Temperature
Continuous operation from -40 °C to + 60 °C (-40 °F to 140 °F) Pan and tilt speeds reduced by 50% at temperatures -40 °C (-40 °F) or below Wiper is functional at -10 °C to +60 °C (14 °F to 140 °F)
Weather Protection Rating
IP66 and IK10 rated housing for outdoor durability and vandal resistance
Weight
6.76 kg (14.9 lbs)
Power Characteristics
Power Consumption
75 W max with 24 VDC aux power supply or 90 W PoE, 110 VA with 24 VAC aux power.
Power Input
High Power over Ethernet (PoE++) and auxiliary power support
